Thermostat Wiring Schematic. American standard thermostat wiring diagram. Honeywell 4 wire thermostat wiring diagram.
Here are the 3 wires: 1 heat / 1 cool thermostat. Consult a professional installer for advanced installations, or contact us at 1.844.295.5556 for help.
electrical power plan symbol 02 dodge ram headlight wiring diagram volvo 5 7 wiring diagram 99 geo storm engine diagram
Thermostat Wiring HELP Ask the Community Wyze Community
Thermostat wiring prob wires out of wall are. • if there’s an orange wire in the connector labeled both w and o/b, then you likely have a heat pump. When you make use of your finger or perhaps the actual circuit with your eyes, it is easy to mistrace the circuit. Furnace and ac (color coded) 1 heat / 1 cool thermostat.
Source: wholefoodsonabudget.com
Green wire as a repurposed c wire. Red wire for power (24v). Mount the sub base to the wall before wiring the thermostat. • if there’s an orange wire in the connector labeled both w and o/b, then you likely have a heat pump. Once mounting and wiring have been completed, return power to the heating system and test the.
Source: forums.wyzecam.com
• if there’s an orange wire in the connector labeled both w and o/b, then you likely have a heat pump. Remove the cover of your thermostat and clean the wires of dust. Wiring diagrams are comprised of two things. C is known as the common terminal. The basic heat a c system thermostat typically utilizes only 5 terminals.
Source: bravocontrols.com
• common or c wires are generally blue. Wiring diagrams are comprised of two things. Mount the sub base to the wall before wiring the thermostat. This diagram shows what each terminal designation that goes to the hvac system. Allow system operation long enough to confirm correct installation.
Source: wholefoodsonabudget.com
It stands for the physical parts of the electrical circuit as geometric shapes, with the actual power and link connections in between them as thin sides. Many technicians have great difficulty understanding how to properly wire a thermostat or how to replace a thermostat with a different thermostat. Once mounting and wiring have been completed, return power to the heating.
Source: schematron.org
This diagram shows what each terminal designation that goes to the hvac system. Put this wire in the nest thermostat’s * o/b connector. 1 heat / 1 cool thermostat. Red wire for power (24v). Wiring tips wire colors can vary, but:
Source: wholefoodsonabudget.com
C is known as the common terminal. These diagrams depict some commonly used and frequently installed configurations but may not match your hvac system. Honeywell thermostat rth2300b wiring diagram hook up the blue wire in the furnace cabinet where the blower section and the other thermostat wires are connected to the furnace. When you use your finger or the actual.
Source: ricardolevinsmorales.com
Flip the furnace/ac breaker to the off position. The basic heat a c system thermostat typically utilizes only 5 terminals. Furnace and ac (color coded) 1 heat / 1 cool thermostat. Honeywell thermostat rth2300b wiring diagram hook up the blue wire in the furnace cabinet where the blower section and the other thermostat wires are connected to the furnace. When.
Source: 2020cadillac.com

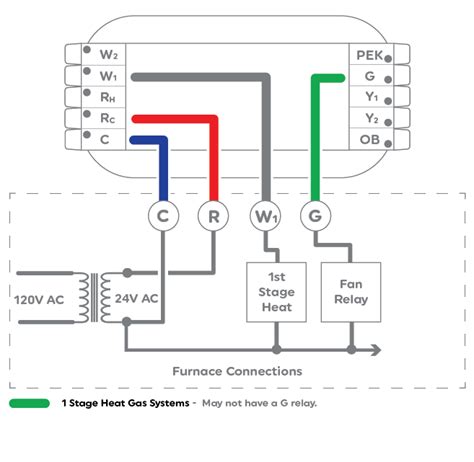

See the diagram below for what each wire controls on your system: 7) connect the wires in accordance with the wiring diagram on next page (wiring diagram also located on the inside lid of appliance control box). Allow system operation long enough to confirm correct installation. The difference between 2 wire and 3 wire thermometer is the “g” or green.
Source: inspectapedia.com
Allow system operation long enough to confirm correct installation. • if there’s an orange wire in the connector labeled both w and o/b, then you likely have a heat pump. C is known as the common terminal. The difference between 2 wire and 3 wire thermometer is the “g” or green wire that is usually used for fans. Put this.
Source: wholefoodsonabudget.com
This diagram shows what each terminal designation that goes to the hvac system. These two connections will ensure that there is power to the thermostat that you are. Air conditioning ac contactor control board 1 this diagram is to be used as reference for the low voltage control wiring of your heating and ac system. Once installation has been confirmed,.
Source: wholefoodsonabudget.com
In the diagrams below, the dotted lines indicate optional wires that may not be applicable to your specific hvac system. Allow system operation long enough to confirm correct installation. C is known as the common terminal. Print the wiring diagram off and use highlighters to be able to trace the signal. Here are the 3 wires:
Source: inspectapedia.com
In the 3 wire thermostat wiring, the green wire serves as a repurposed c or “common” wire. A single trick that we use is to print out a similar wiring diagram off twice. Consult a professional installer for advanced installations, or contact us at 1.844.295.5556 for help. Heat only (one, two or three stages) Each part should be set and.
Source: 2020cadillac.com
- connect the wires in accordance with the wiring diagram on next page (wiring diagram also located on the inside lid of appliance control box). Thermostat wiring prob wires out of wall are. Consult a professional installer for advanced installations, or contact us at 1.844.295.5556 for help. Wiring diagrams are comprised of two things. In fact, the wiring of a.
Source: wholefoodsonabudget.com
The color of wire r is usually red and c is black. The thermostat uses 1 wire to control each of your hvac system’s primary functions, such as heating, cooling, fan, etc. C is known as the common terminal. 7) connect the wires in accordance with the wiring diagram on next page (wiring diagram also located on the inside lid.
Source: exatin.info
Once mounting and wiring have been completed, return power to the heating system and test the installation. Flip the furnace/ac breaker to the off position. The basic heat + a/c system thermostat typically utilizes only 5 terminals. Put this wire in the nest thermostat’s * o/b connector. Remove the cover of your thermostat and clean the wires of dust.
Source: dentistmitcham.com
Green wire as a repurposed c wire. It is clear and understandable. In the diagrams below, the dotted lines indicate optional wires that may not be applicable to your specific hvac system. 7) connect the wires in accordance with the wiring diagram on next page (wiring diagram also located on the inside lid of appliance control box). See the diagram.
Source: electrical-online.com
Allow system operation long enough to confirm correct installation. These two connections will ensure that there is power to the thermostat that you are. The thermostat uses 1 wire to control each of your hvac systems primary functions such as heating cooling fan etc. 1 trick that we 2 to printing a similar wiring. A single trick that we use.
Source: tonetastic.info
Many technicians have great difficulty understanding how to properly wire a thermostat or how to replace a thermostat with a different thermostat. • if there’s an orange wire in the connector labeled both w and o/b, then you likely have a heat pump. Each part should be set and linked to other parts in specific way. Thermostat wiring guide |.
Source: worldvisionsummerfest.com
Colors, terminals, functions, voltage path! Air conditioning ac contactor control board 1 this diagram is to be used as reference for the low voltage control wiring of your heating and ac system. In the diagrams below, the dotted lines indicate optional wires that may not be applicable to your specific hvac system. Mount the sub base to the wall before.
Source: ricardolevinsmorales.com
As shown in the diagram, you will need to power up the thermostat and the 24v ac power is connected to the r and c terminals. C is known as the common terminal. Colors, terminals, functions, voltage path! The thermostat uses 1 wire to control each of your hvac system’s primary functions, such as heating, cooling, fan, etc. Put this.
